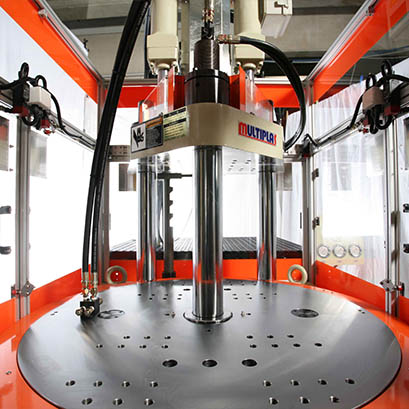

Clamping Unit
- Vertical clamping with hydraulic piston
- Setting of clamping force
- 4 stages mold closing adjustable in speed, pressure and position
- 3 stages mold opening adjustable in speed, pressure and position
- Mold protection with adjustable speed and pressure
- Auto lubricating slide bushing for tie-bars and cylinders
- 3 clamping safety devices (mechanical, hydraulic, electric)
- Linear transducer for clamping position
- Mould adjustable in pressure and speed
- Light curtain operator side
- Two-hands push botton device
- Speed and pressure adjustable with proportional valves
- Antivibration pads
- Cooling water regulator

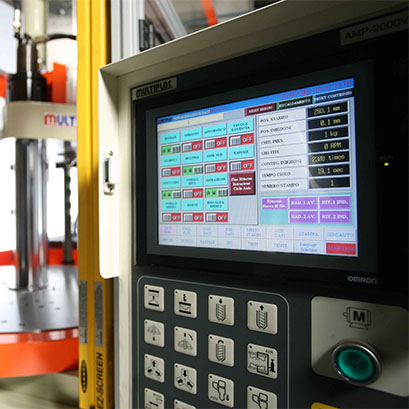

Control Unit
- Omron PLC
- TFT 8.4’’ color touch screen
- Mold data memory (80)
- USB output
- Error message display
- Error message history display
- SPC control • Alarm setting for max oil temperature
- Cycle control with with LCD screen
- Mold, injection, ejector position display
- Clamping pressure display
- Screw rotation display
- Counter injections display
- Signal control I/O display
- Time and movement machine control display
- Printer connection function
Injection Unit
- 4 stages injection adjustable in speed, pressure and position
- 3 stages holding pressure adjustable in speed, pressure and time
- Cushion control min/max
- Decompression (suck back) before and after plasticizing
- Automatic carriage movement
- Auto purge
- P.I.D. heating control
- Independent min/max temperature setting
- Linear transducer for injection stroke control
- Control time injection
- Stainless steel hopper
- Two parallel hydraulic cylinders’ injection movement
